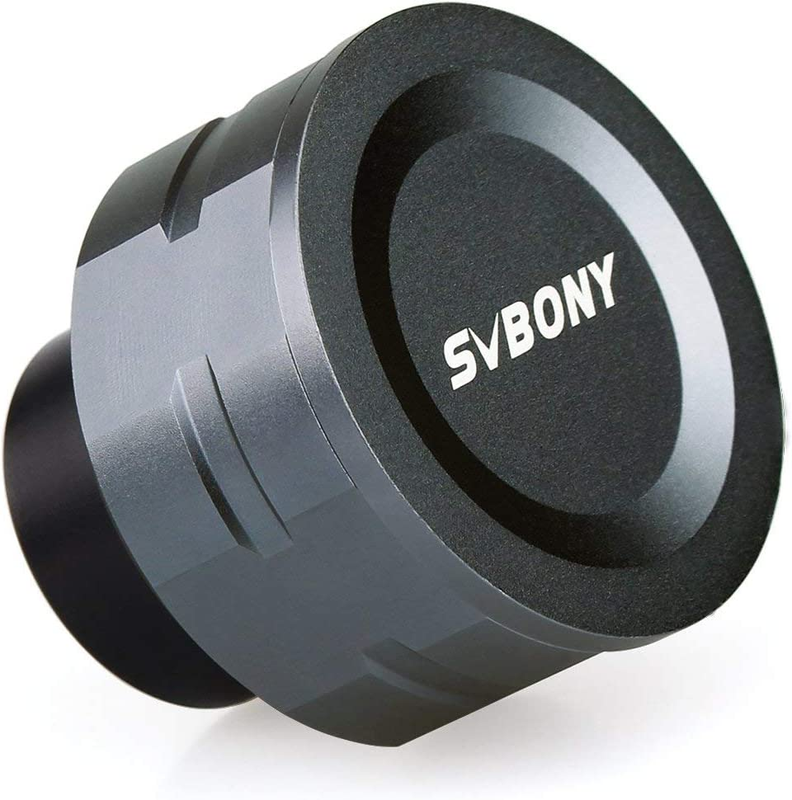

Telescope Camera CMOS Electronic Digital Eyepiece for Telescope 1.25

Telescope Camera CMOS Electronic Digital Eyepiece for Telescope 1.25 Inches
Description Item model number FUSF9159A Focus Type Manual Focus Country of Origin China Compatible Devices telescope camera Item Weight 9.6 Ounces Is Discontinued By Manufacturer No Product Dimensions 7.28"D x 5.31"W x 2.95"H Telescope Mount Description Fixed Mount Finderscope Reflex

Plug and play ;windows system needs to download Sharpcap Capture; Linux system needs to download AstroDMx Capture; Mac system needs to download oaCapture; Android system needs to download USB Camera. real time dynamic observation by crystal clear image

Dark light compensation technology;greatly improve the camera's image clarity in low light conditions

Record 2K video at high speed;up to 30 frames per second at 1920x1080 resolution

Great for lunar and planetary shots;share the view of bright planets;the Moon and terrestrial targets;not suitable for deep space imaging

It can connect a 1.25 inch filter and the filter thread is M28.5x0.6;the new SV105 adds filter threads and dust protection window

Product Description
When you using SV105 with your telescope. you need to adjust the telescope focus wheel. while checking the image on the computer for clarity/sharpness of focus. NOTE:
The SV105 can't auto focus; you need to adjust the telescope focus to see a clear image.
SV105 camera works on many Windows, Linux, Android and Mac OS systems.
SV105 works well with telescope focal lengths in 400mm to 800mm range so using a refractor telescope with this focal length should allow seeing a clear image without any accessories.
When using a refractor telescope on the Moon with over 1000mm focal length you may need a focal reducer in order to focus correctly. SVBony also sells a 1.25” focal reducer. When viewing Jupiter or Saturn, we recommend also using a barlow lens for higher magnification up to 300 times magnification
power. you can better see the finer details of Jupiter or Saturn. The clarity of the image is also related to the your shooting environment and light pollution.
A little tip for beginners: if you are shooting the Moon, keep your gain lower and brightness down a little bit since the Moon is closer and brighter. When shooting the planets, increase the gain and brightness since they are much dimmer objects. SV105 is just a tool for astrophotography. If you want to shoot planets like Jupiter, Saturn and Mars, etc. the quality of the telescope you use needs to be good enough; the quality of your telescope is related to SV105 shooting performance.
How to Use SV105 Astronomy Camera Firstly,
download the SharpCap from the SharpCap site. then install it following
the prompts. Secondly,
test the SV105 by connecting it to the computer with the USB cable that comes with the camera. There is no need install a driver because the SV105 is a standard USB device, Windows 7 and
newer operating system will automatically install the driver. Thirdly,
check your computer Device Manager, and if you find the Camera SVBONY SV105, it indicates a successful connection. Fourthly,
running the astronomy software SharpCap as administrator, open the software and single click the camera button, you will see SVBONY SV105, double click it, then you will see the image or some light on the screen, if all equipment is working well. Finally,
connect 1.25" SV105 electronic eyepiece to your telescope, adjust the telescope focus wheel and take photos or video on your computer and save the files. In SharpCap (or your other image capture software) adjust the Gain, Contrast, Exposure Time, Frame rate and Color Saturation. Q: Does it shoot in color? A: Yes, it uses CMOS color sensor. Q: Can I use this camera with Android smartphone? A: SV105 telescope camera can be used with Android phones.Please note: SV105 is not compatible with the new Mac system MacOS 12.0.1 "Monterey". Note: If you are a beginner, you can adjust according to the parameter list of User Guide. It's in the Product information.
Working Temperature
0°F ~ 122°F Working Temperature
It is easy to achieve a very good working result even in a low temperature environment.
Power Consumption: 150mA@5V
Working Temperature: 0°F ~ 122°F
Storage Temperature: -4° F ~ 140°F
Working Relative Humidity: 20%~80%
Storage Relative Humidity: 20%~95%
Ensure the normarely night sky observing
In some countries where electricity is not sufficiently developed, SV105 with 2 USB connectors could also works well, it can ensure the normarely night sky observing
If the power not steable, then need you connect the sub-USB connector to your computer or a power hub, it will transport double electric current to make sure the SV105 eyepiece camera work normaly with enought electric power.
If you use a old version laptop. then the sub-USB should work
1.25" adapter barrel
SV105 telescope camera just replaces the eyepiece, for electronically enhanced viewing, or astrophotography. It would NOT work with most finder scopes that do not have a removeable eyepiece, or one that has an eyepiece smaller than 1.25"
Dark light compensation technology
The image processor uses dark light compensation technology to greatly improve the telescope camera's image clarity in low light conditions.
By processing the image, the Record 2K video at high speed, up to 30 frames per second at 1920*1080 resolution, with a maximum frame rate of up to 200 frames per second (320*240)
CMOS color sensor
For lunar and planetary imaging only. The moon, the sun and planets are the easiest objects to capture in the night sky making this camera great for beginners
Please note: You need a microscope adapter when connecting a microscope. The SV105 only fits a 1.25-inch interface.
Package Includes
1 x Astronomy eyepiece camera
1 x 1.8m USB cable
1 x Cleaning cloth
SV105 can work with a microscope
1,Set up the microscope
2,Put the specimen on the stage of microscope,adjust the focus wheel to find clear image
3,Connect SV105 to the Laptop, open the SharpCap, Remove microscope eyepiece, and put Camera into eyepiece hole by using a microscope adapter
4, You can see image on the computer screen,adjust exposure time, Gain, and others, until get the clear image
Compact and light weight
Sturdy metal design, compact, light weight and easy to use software make it very appealing for beginners.
SV105 telescope camera is so light that you do not have to worry about balancing issues as you will with a DSLR making it perfect.
Specification Pixel size: 3µm Sensor: 1/2.7" CMOS OV2710 Resolution: 2 mega pixels 1080x1920 ADC: 10 bit Power consumption: 150mA@5V
